| Item | HiXKC500 Series | HiXKC500 Series | HiXKC500 Series | HiXKC500 Series |
| Pixel Pitch | P2.6mm | P2.97mm | P3.91mm | P4.81mm |
| LED Encapsulation | SMD1515 | SMD1515 | SMD2121 | SMD1921 |
| Scan Mode | 1/32 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Pixel Per Sq.m | 147,456 Pixel | 112,896 Pixel | 65,536 Pixel | 43,264 Pixel |
| Brightness(Nits) | 800-1200cd/㎡ | 800-1200cd/㎡ | 800-1200cd/㎡ | 800-1200cd/㎡ |
| IP Protection | IP43 | IP43 | IP43 | IP43 |
| Maintenance Method | Front/Rear Serviceable | |||

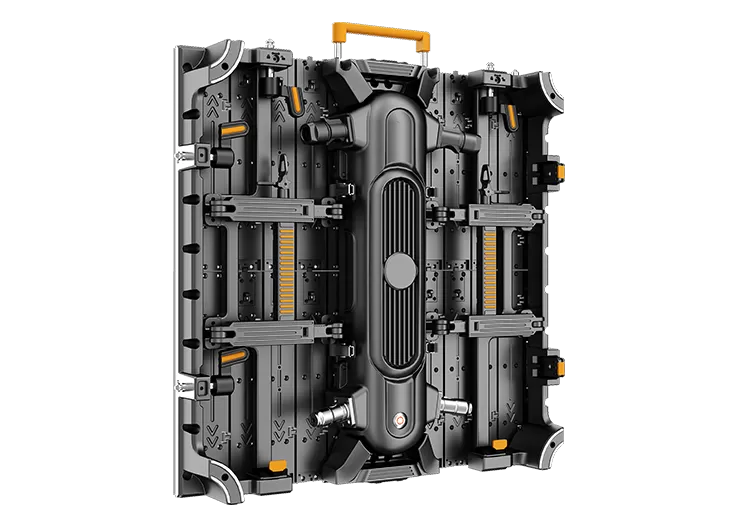

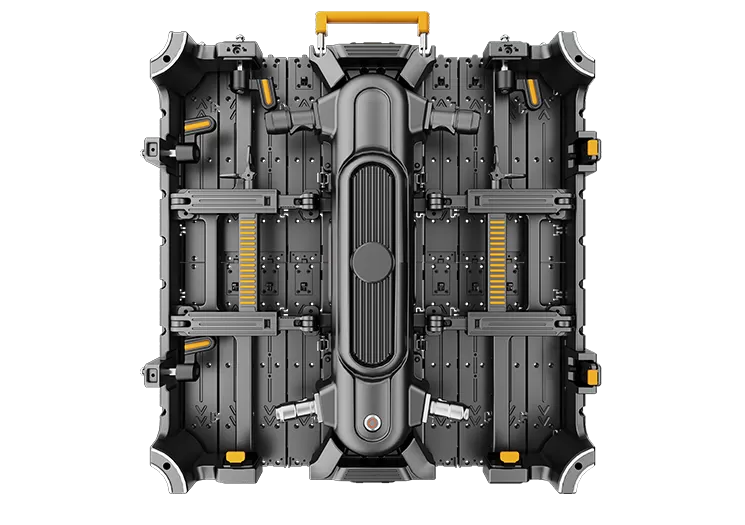

| Cabinet Material | Die Casting Aluminum | |||

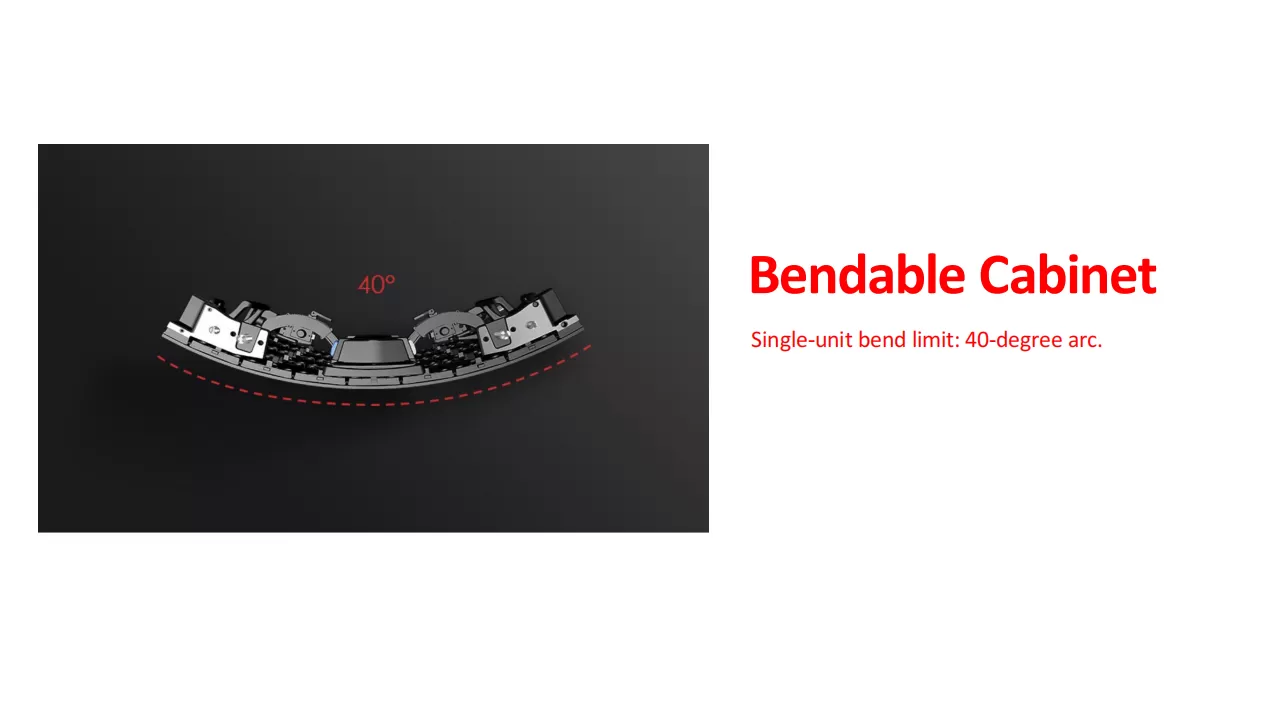

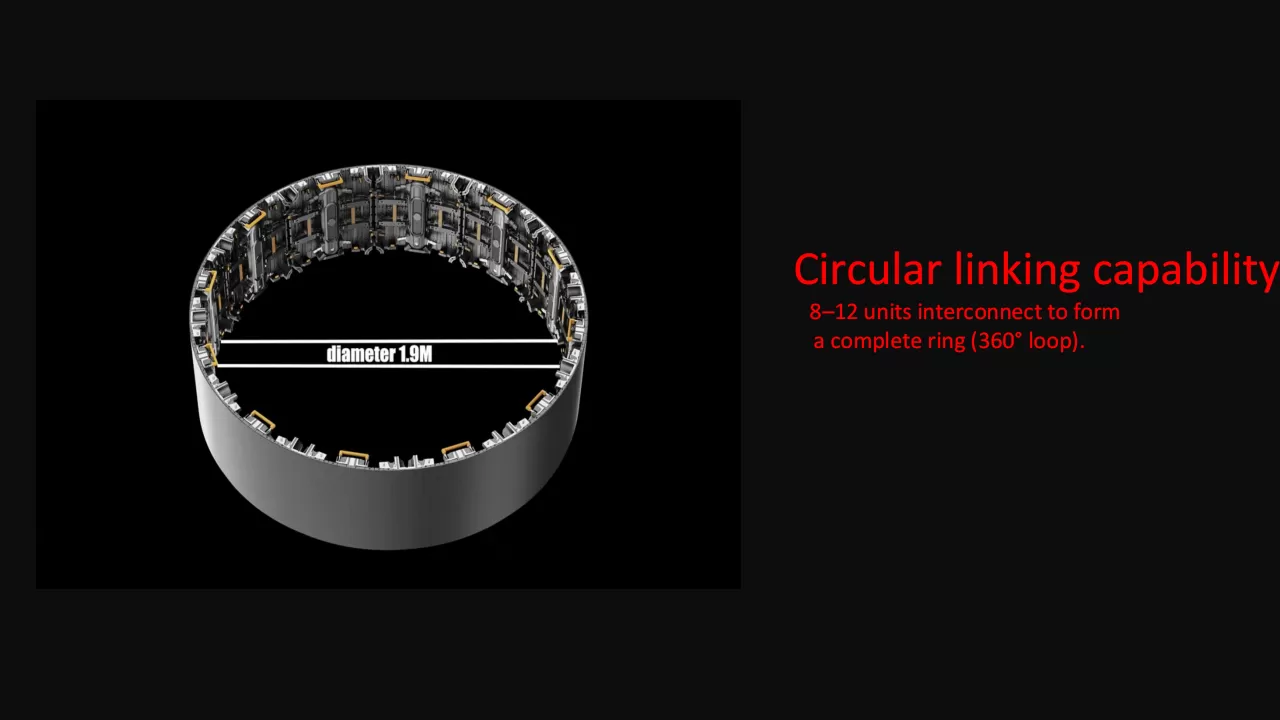

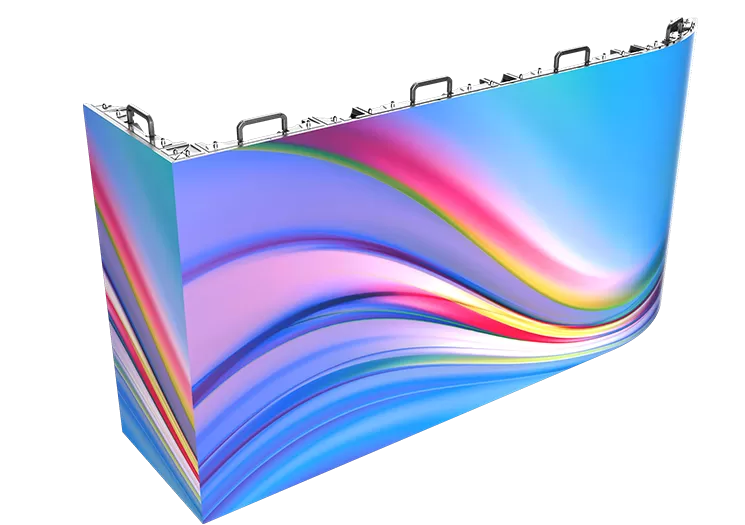

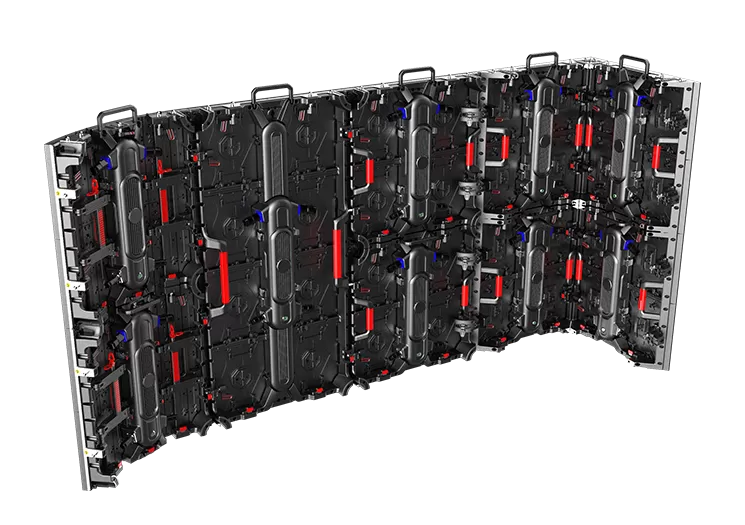

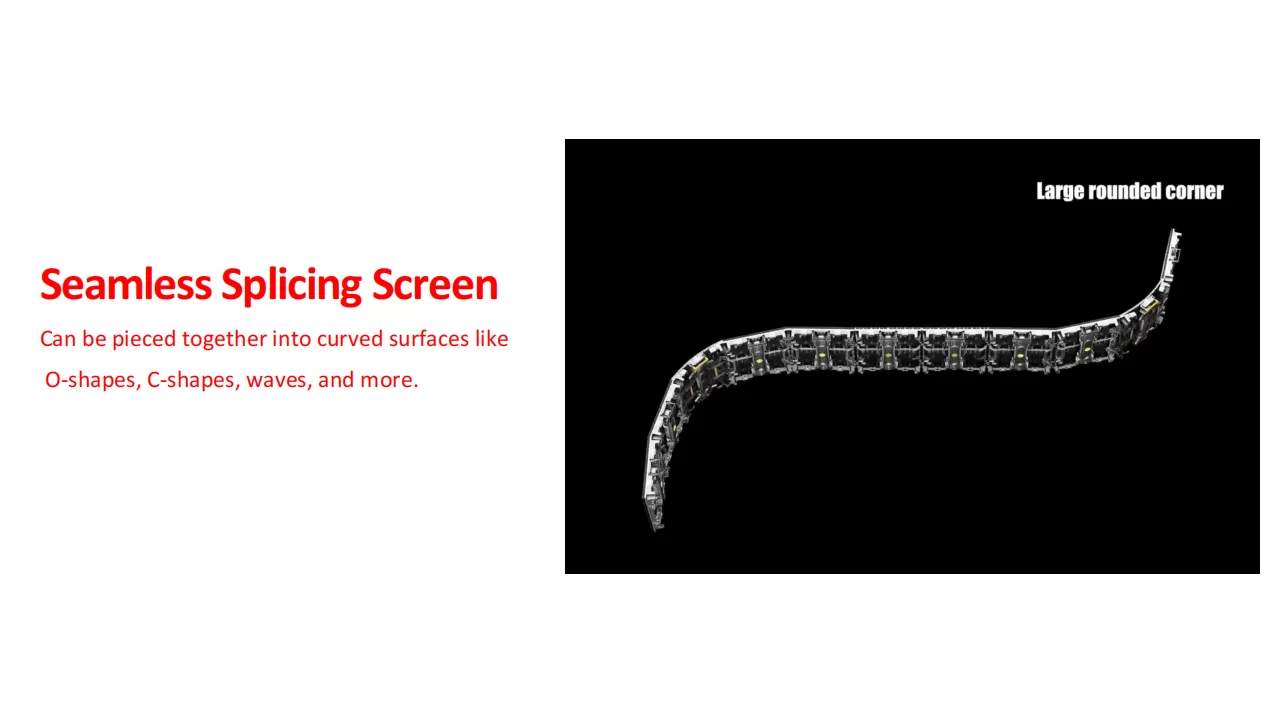

| Curved Angle(0ptional) | ±15 Degrees | |||
| Module Size(W*H) | 250mm*250mm | |||
| Cabinet Size(W*H*D) | 500mm*500mm*90mm | |||
| 500*1000*90mm | ||||
| Refresh Rate | 3840Hz | |||
| Color Temperature | 9500K ±500（Adjustable） | |||

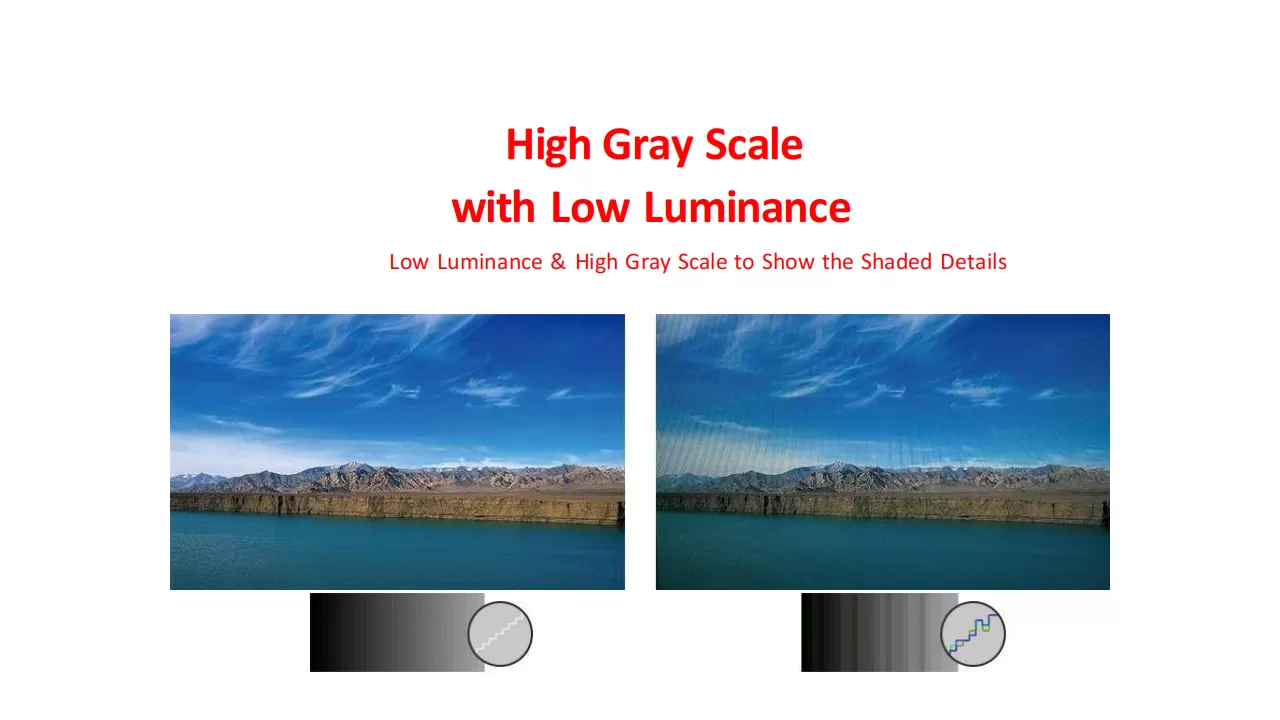

| Gray Scale | 14-16Bit | |||
| Cabinet Weight | 7KG | |||
| Usage environment | Indoor | |||
| Average Power Consumption | 350-400Watt/㎡ | |||
| Max Power Consumption | 800Watt/㎡ | |||
| Operating Temperature | -20°C to 50°C | |||
| Working Voltage | 100-240Volt(50-60hz) | |||
