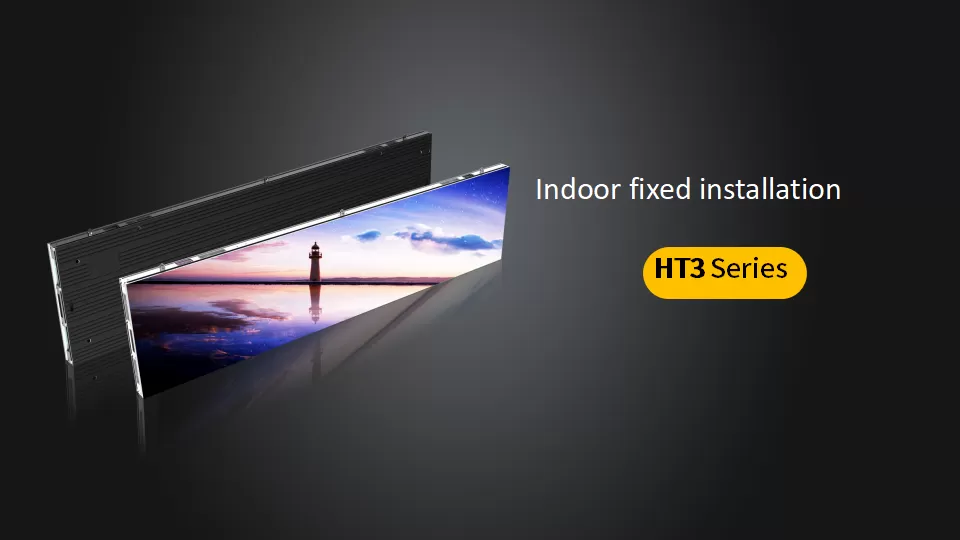

| Item | HT3 | HT3 | HT3 | HT3 | HT3 | HT3 |
| LED Type | SMDD1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical density(Dot/sqm) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |

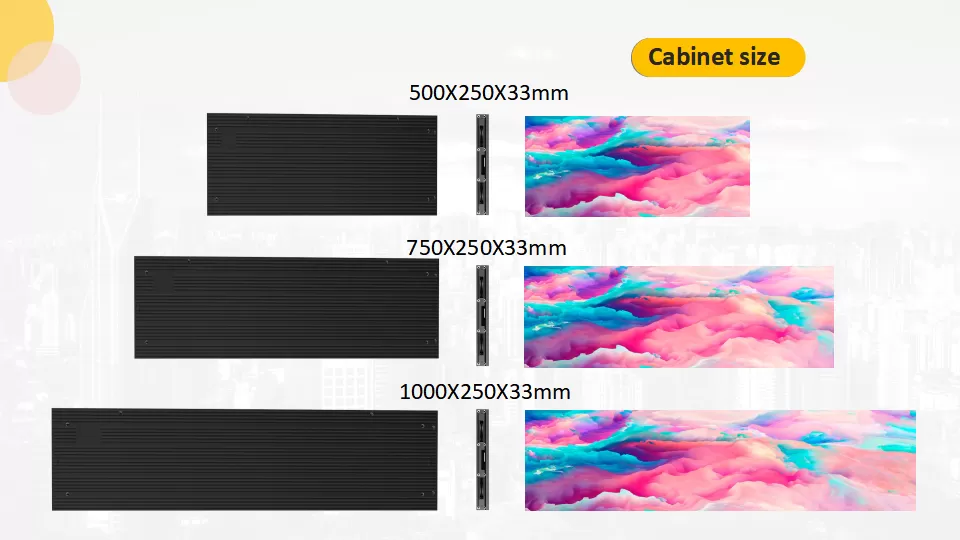

| Panel size(mm) | 1000X250X33 | 1000X250X33mm | 1000X250X33mm | 1000X250X33mm | 1000X250X33mm | 1000X250X33mm |
| Panel resolution | 640X160 480X160 320X160 |
512X128 384X128 256X128 |
400X100 300X100 200X100 |
384X96 288X96 192X96 |
336X84 252X84 168X84 |
256X64 192X64 128X64 |
| Module Quantity(WXH) | 4X1/3X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |

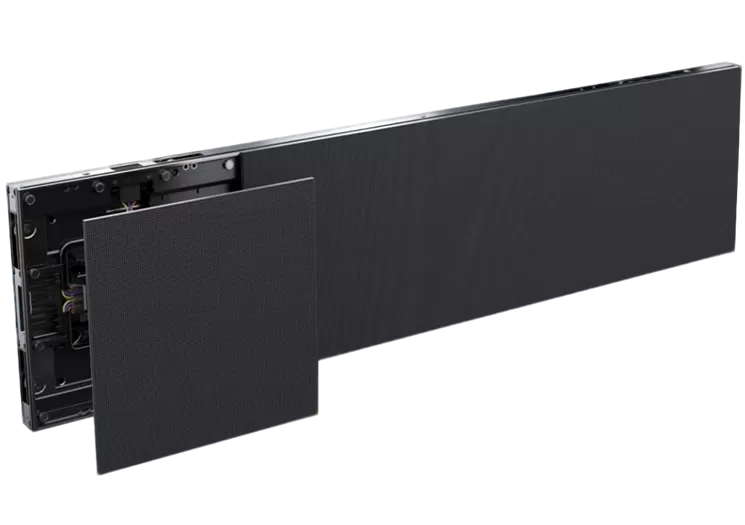

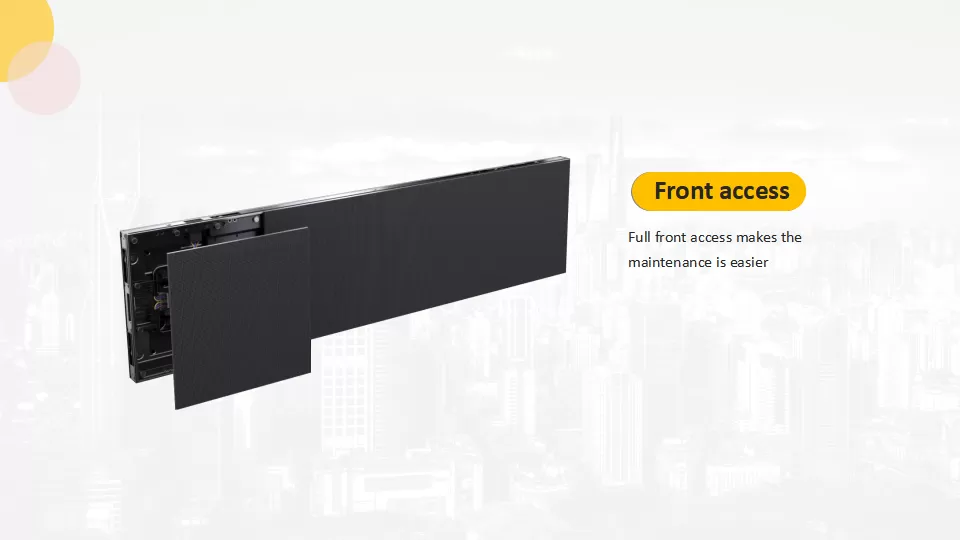

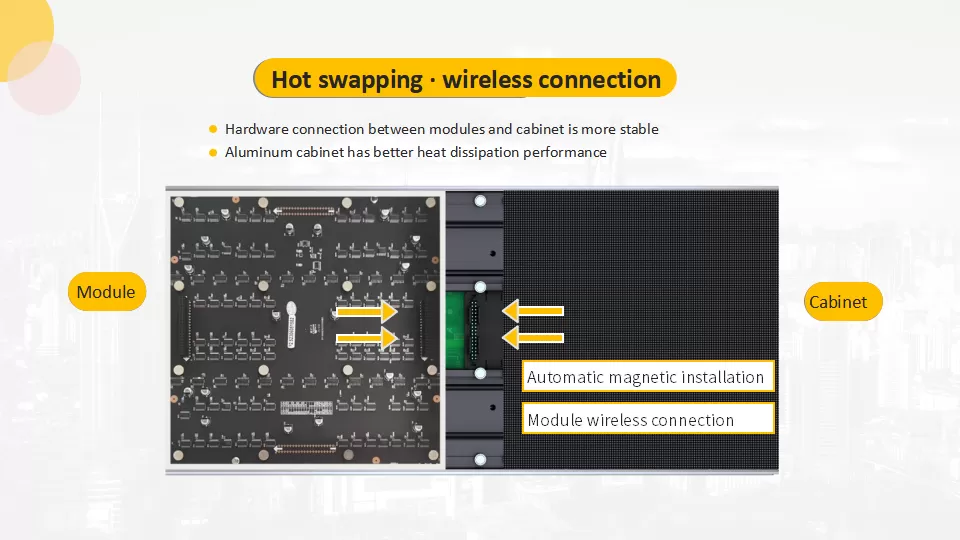

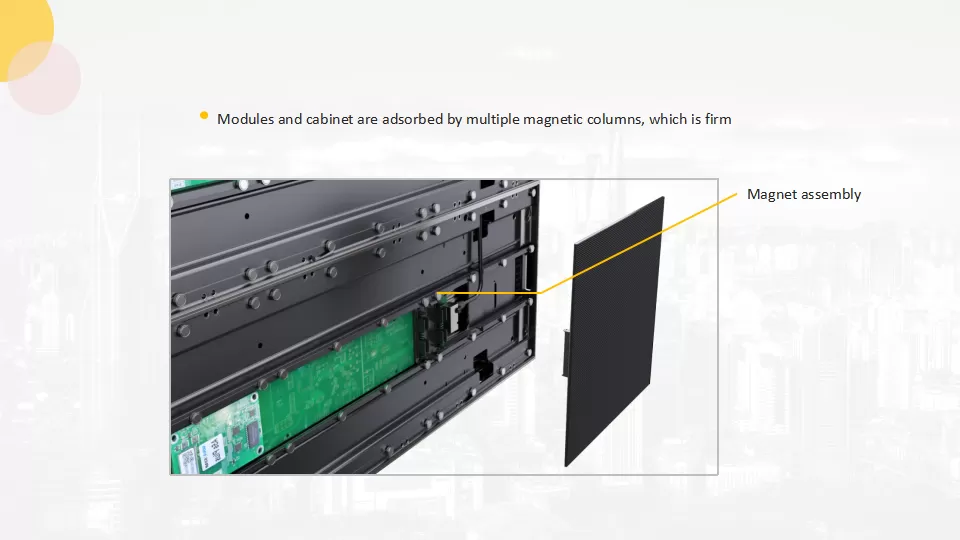

| Maintenance | Front access | Front access | Front access | Front access | Front access | Front access |
| Cabinet material | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Brightness(Nits) | 1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ |
| Color Temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Gray level | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Single point brightness correction | Have | Have | Have | Have | Have | Have |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max. power consumption(W/sqm) | 650 | 650 | 650 | 650 | 650 | 650 |
| Avg. power consumption(W/sqm) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Protection level | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Power input | AC90-264V,47-63Hz | |||||
| Wroking temperature/humidity(℃/RH) | Minus 20~60℃/10%~85% | |||||
| Storage temperature/humidity(℃/RH) | Minus 20~60℃/10%~85% | |||||
| Certificatiom | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
