| Item | HMG Series | HMG Series | HMG Series | HMG Series | HMG Series | HMG Series |
| Pixel Pitch | P2.5mm | P3.076mm | P4mm | P5mm | P6.67mm | P8mm |
| LED Encapsulation | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727/SMD3535 |
| Scan Mode | 1/16 Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan |
| Pixel Per Sq.m | 160,000 Pixel | 105,688 Pixel | 40,000 Pixel | 40,000 Pixel | 22,540 Pixel | 15,625 Pixel |
| Module Size(W*H) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |

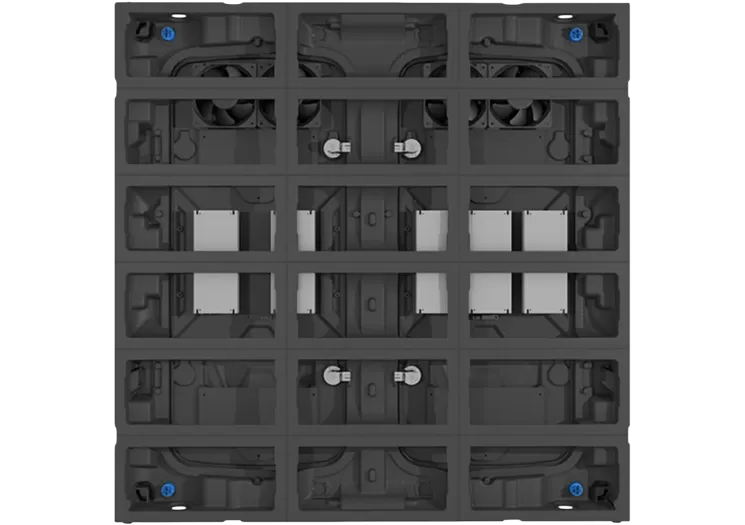

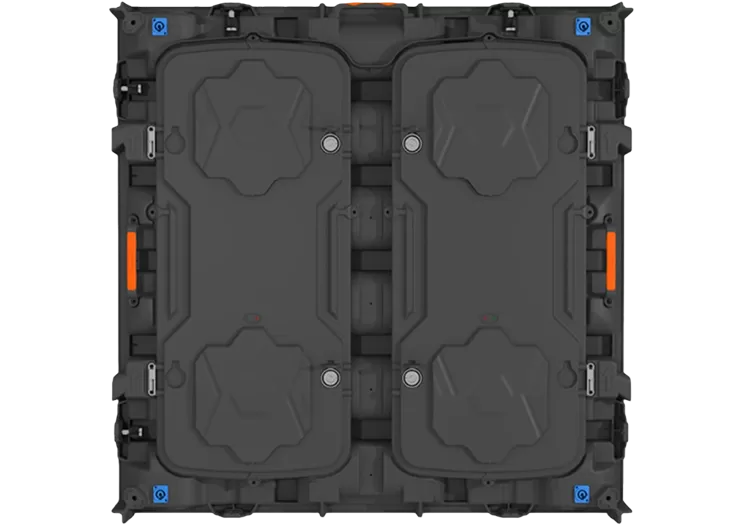

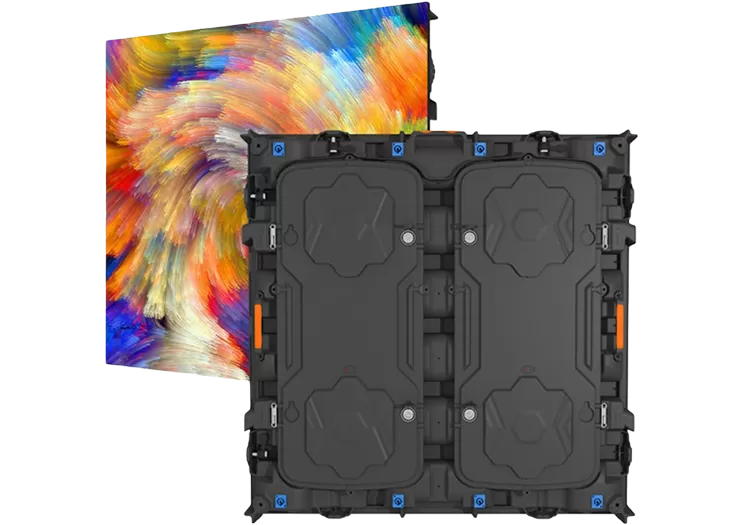

| Cabinet Size(W*H*D) | 960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm |
| Cabinet Weight | 35KG | 35KG | 35KG | 35KG | 35KG | 35KG |
| Max Power Consumption | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ | 900Watt/㎡ |
| Brightness(Nits) | 5500-7500 | 5500-7500 | 5500-7500 | 5500-7500 | 5500-7500 | 5500-7500 |
| Refresh Rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Maintenance Methods | Rear/Front Serviceable | |||||
| Cabinet Material | Aluminun | |||||
| Refresh Rate | 1920-3840Hz | |||||
| Color Temperature | 6500K ±500（Adjustable） | |||||
| Grey Scale | 14-16bit | |||||
| Average Power Consumption | 500Watt/㎡ | |||||
| IP Protection | IP65 Front/Rear | |||||
| Operating Temperature | -20°C to 50°C | |||||
| Working Voltage | 100-240Volt(50-60hz) | |||||
