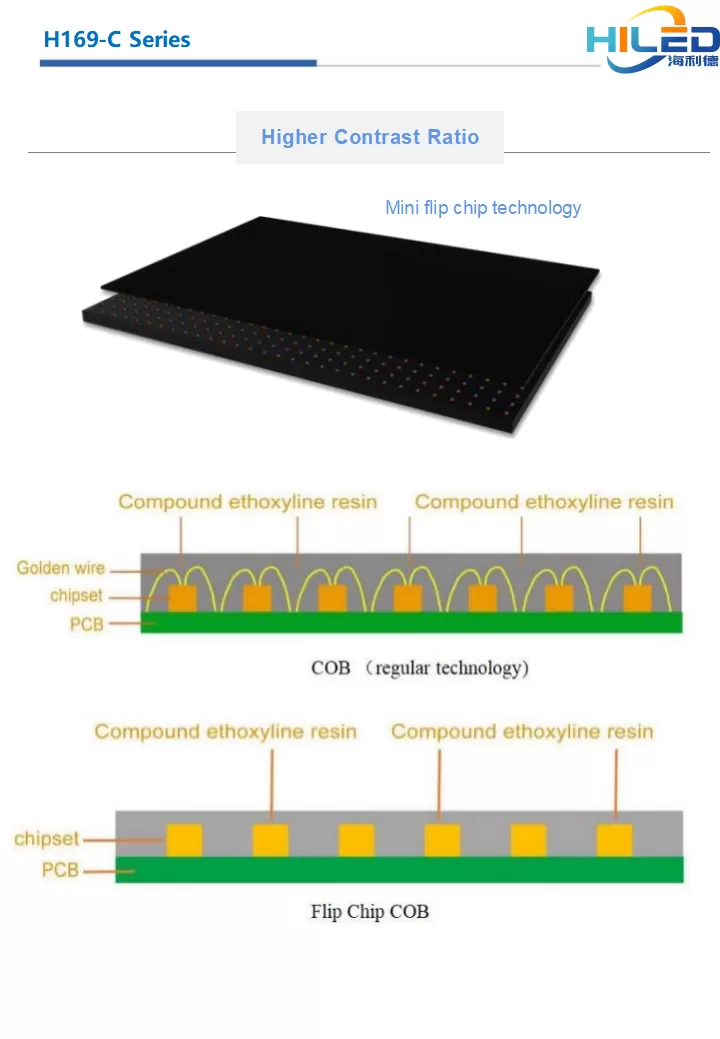

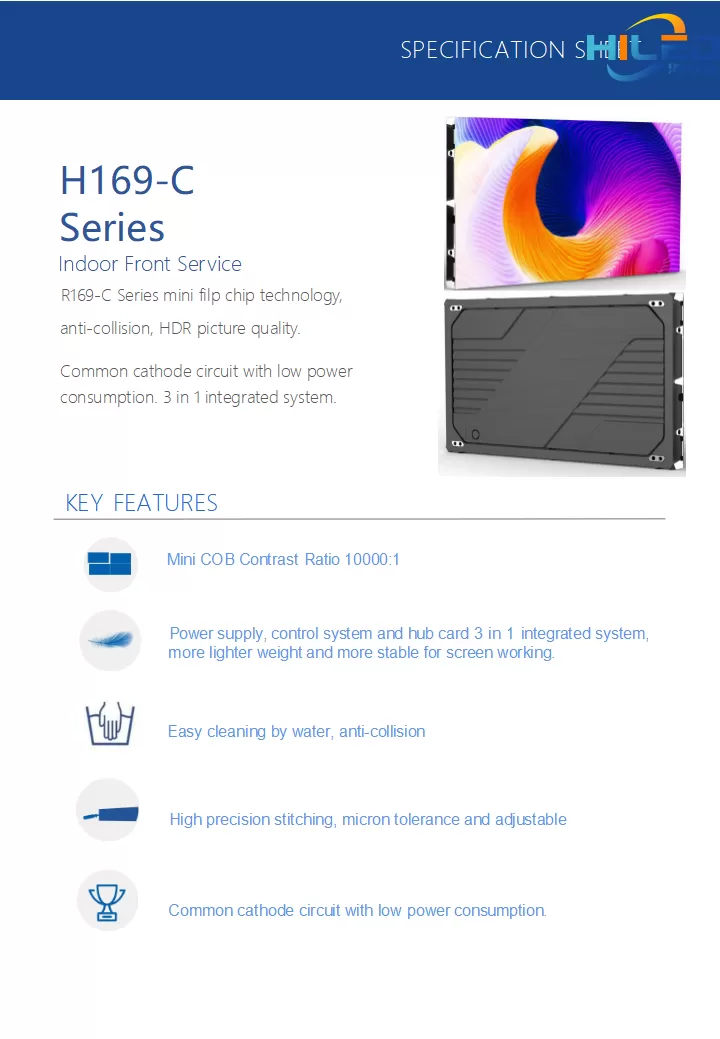

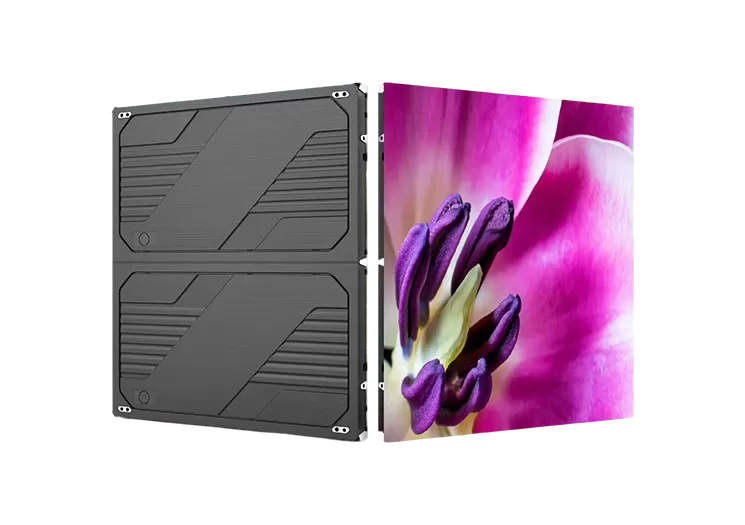

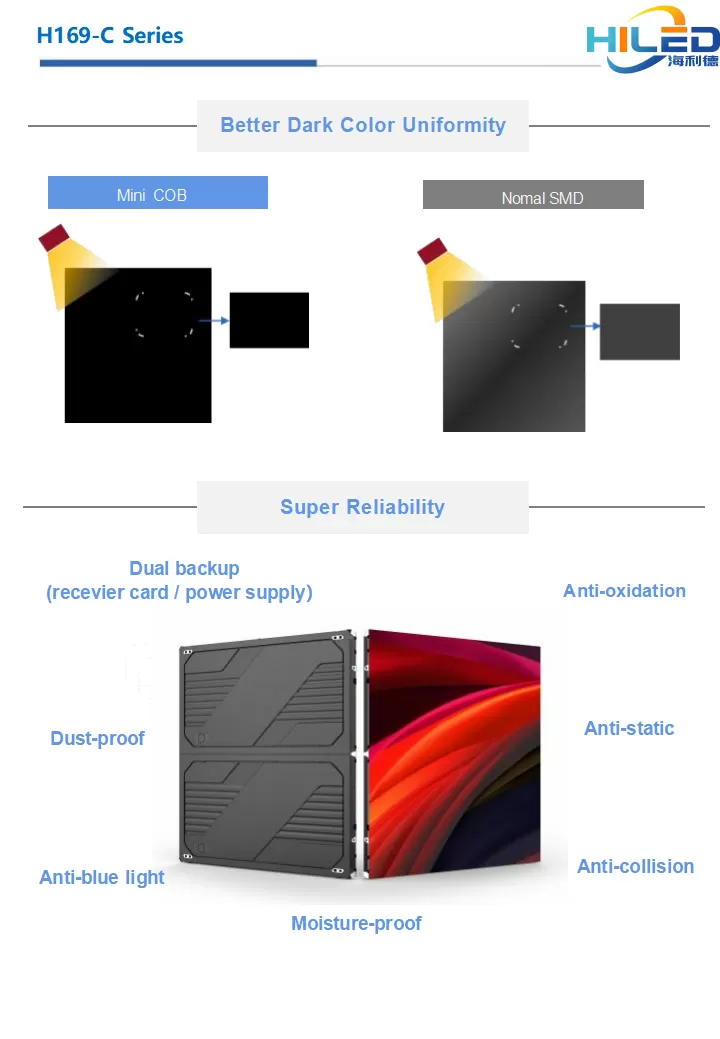

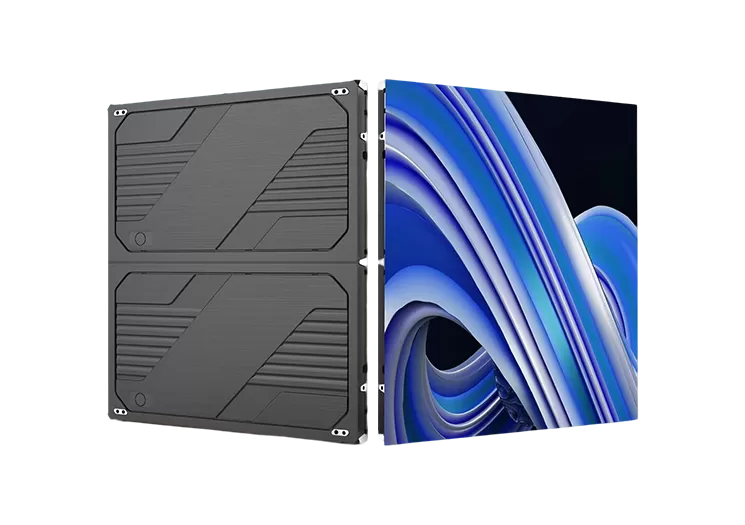

R169-C Series mini filp chip technology,anti-collision, HDR picture quality.
Common cathode circuit with low power consumption. 3 in 1 integrated system.
H169-C Series
- Features
- Specification
,
,
,
,
,,,,,
Related Products
HK500
P1.963｜P2.6｜P2.97｜P3.91｜P4.81
P1.963｜P2.6｜P2.97｜P3.91｜P4.81
HK500
Magnetic Module
Read more
HQX
P2.5｜P3.91｜P6.25
P2.5｜P3.91｜P6.25
HQX
Holographic Invisible Screen
Read more
HT3
P1.25｜P1.56｜P1.87｜P1.95｜P2｜P2.5｜P2.6｜P3.91
P1.25｜P1.56｜P1.87｜P1.95｜P2｜P2.5｜P2.6｜P3.91
HT3
High contrast corrugated light absorbing mask achieves high contrast
Read more
HTi Series
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
HTi Series
High-end energy-saving LED dispiay
Read more
| Pixel Pitch | P0.625 | P0.78mm | P0.9375mm | P1.25mm | P1.5625mm | P1.875mm |

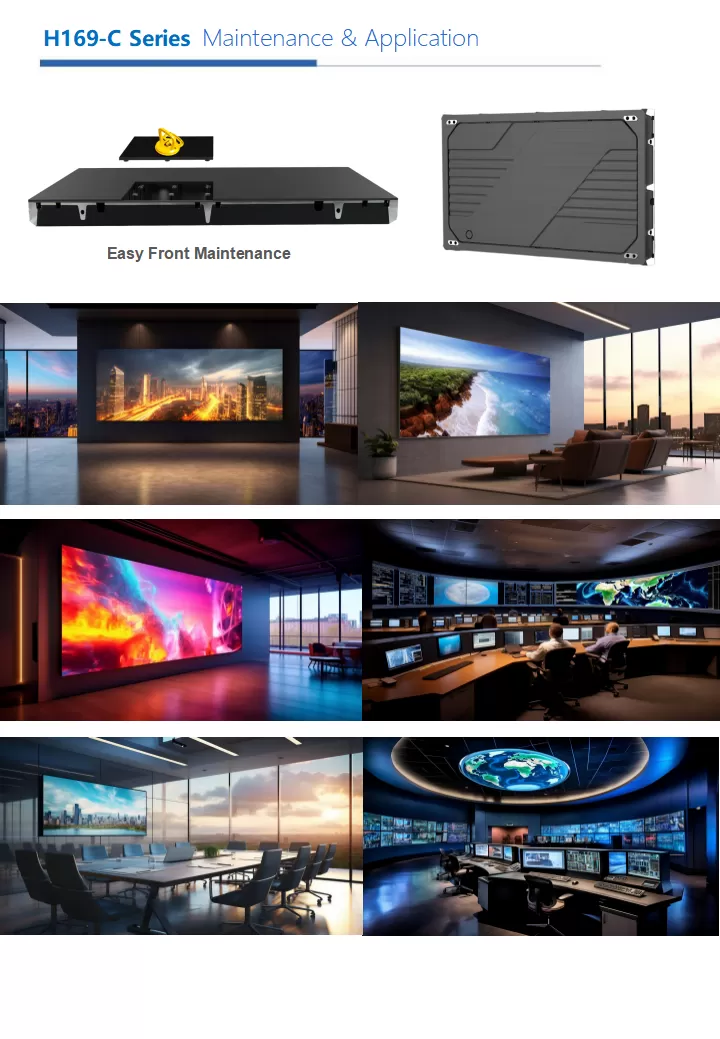

| Maintenance | Front Maintenance | |||||
| Cabinet Resolution | 960*450 | 768*432 | 640*360 | 480*270 | 384*216 | 320*180 |

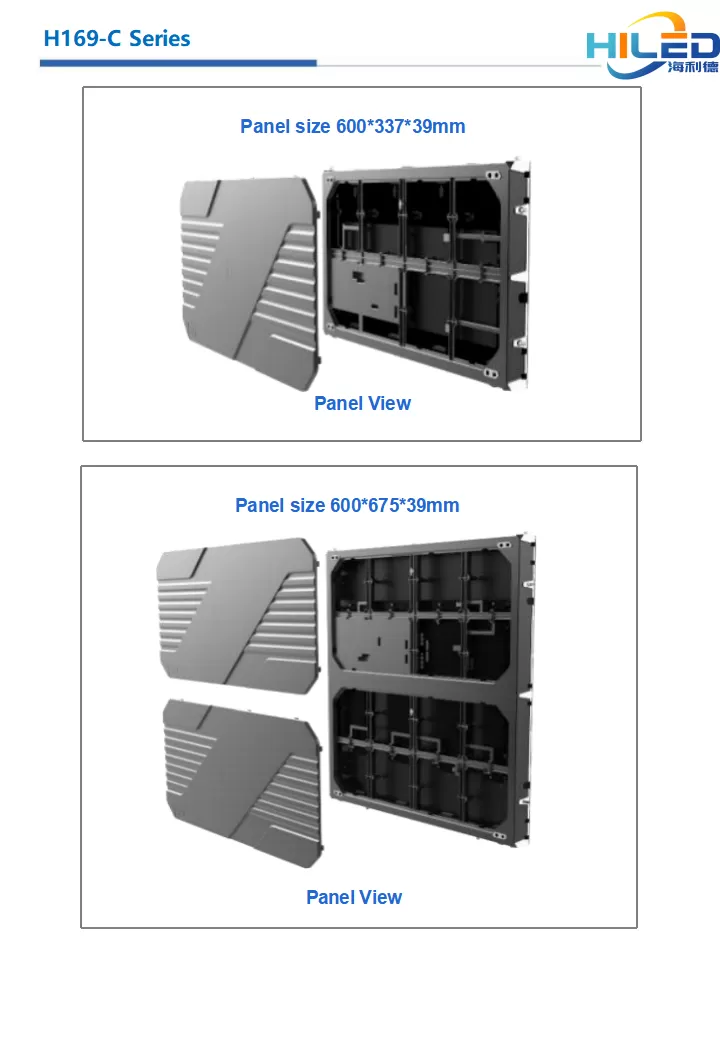

| Cabinet Size | 600*337.5mm | |||||
| Module Size | 150*168.75mm | |||||
| Module Quantity | 4*2 Module in one cabinet | |||||
| Weight | 4kg/panel | |||||
| Brightness | 600 Nits | |||||
| Max Power Consumption | 92W/Panel | 85W/Panel | 75W/Panel | 70W/Panel | 70W/Panel | 65W/Panel |
| Scan | 60S | 48S | 54S | 60S | 54S | 40S |
| Power Supply Specification | 3.8V 30A | |||||
