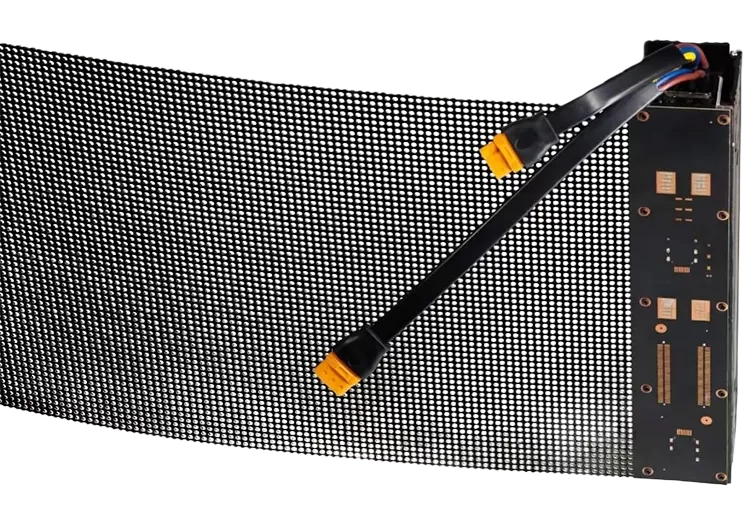

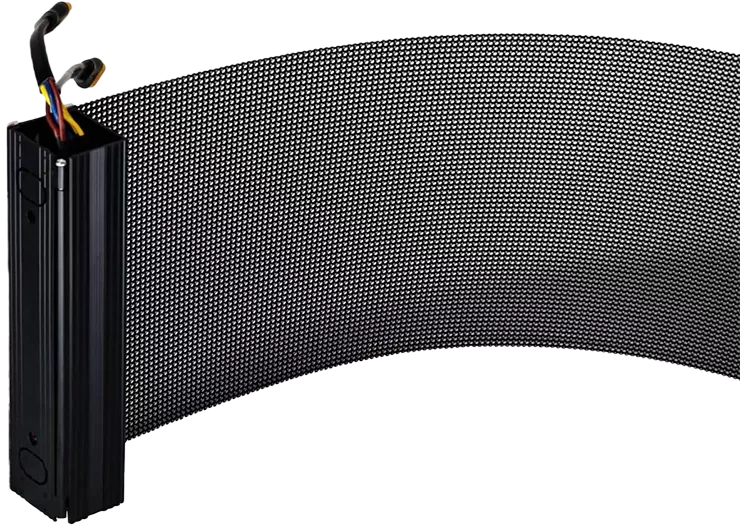

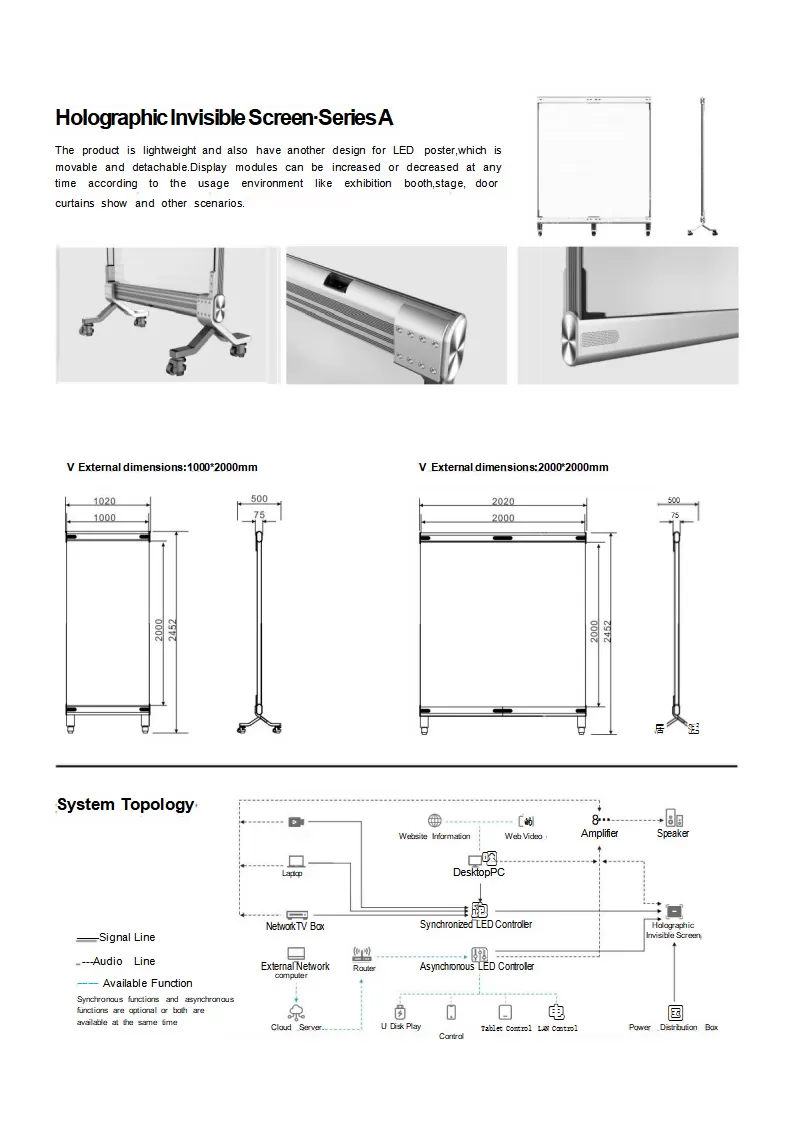

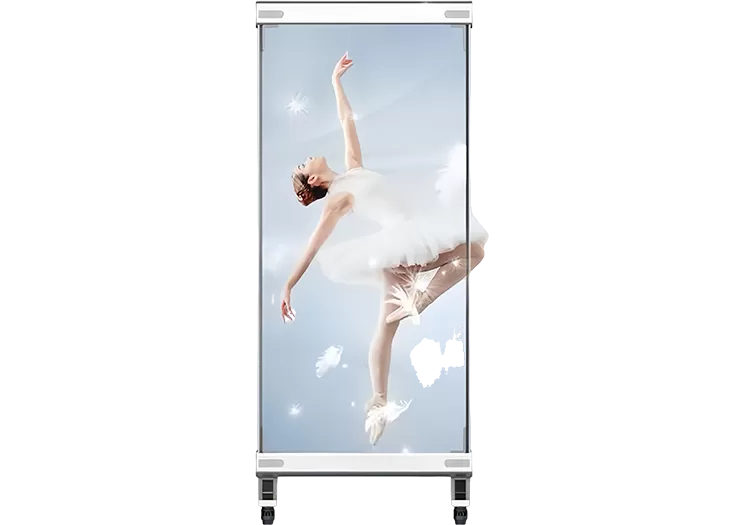

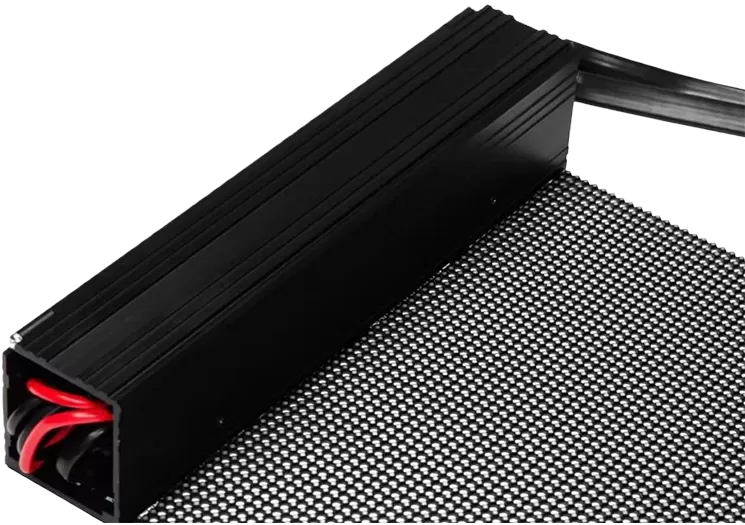

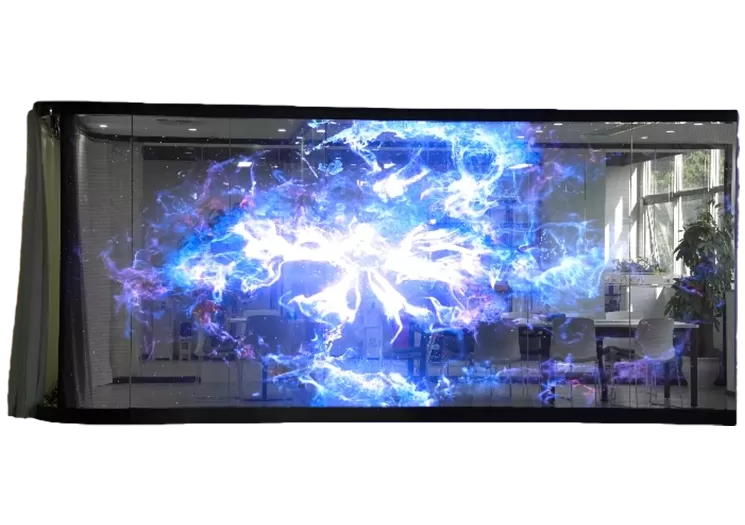

Holographic Invisible Screen
High definition,real invisibility

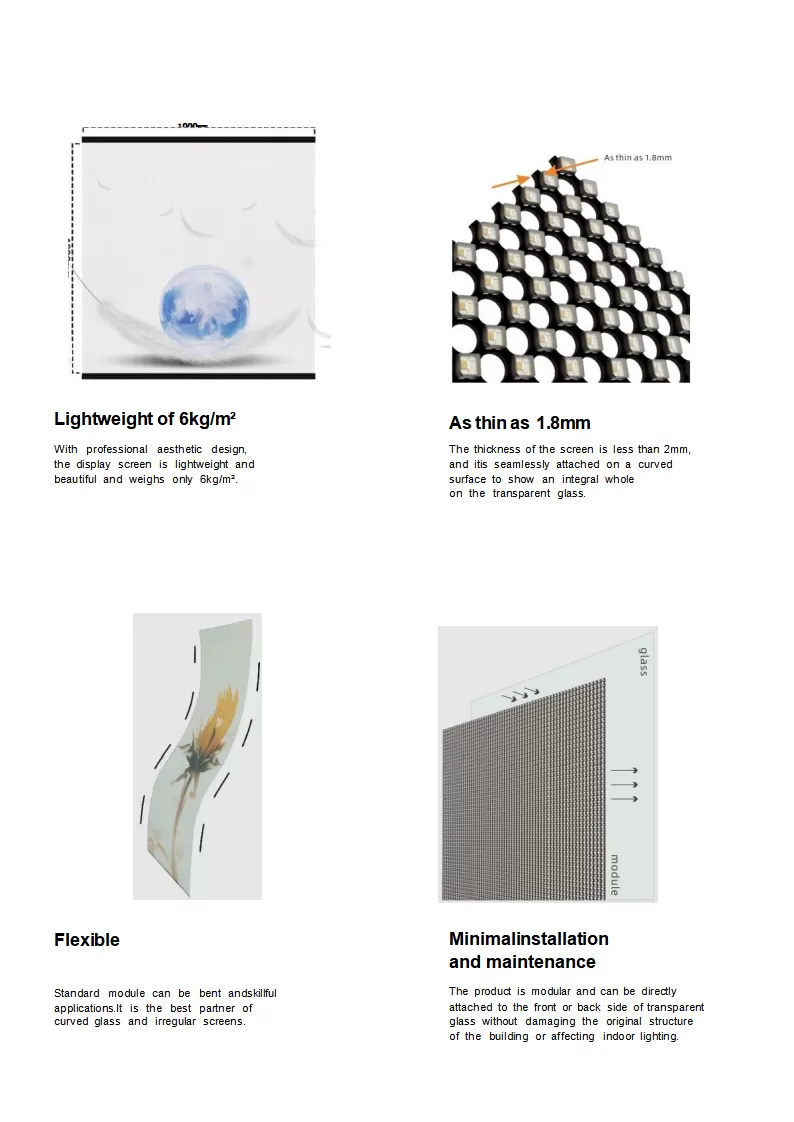

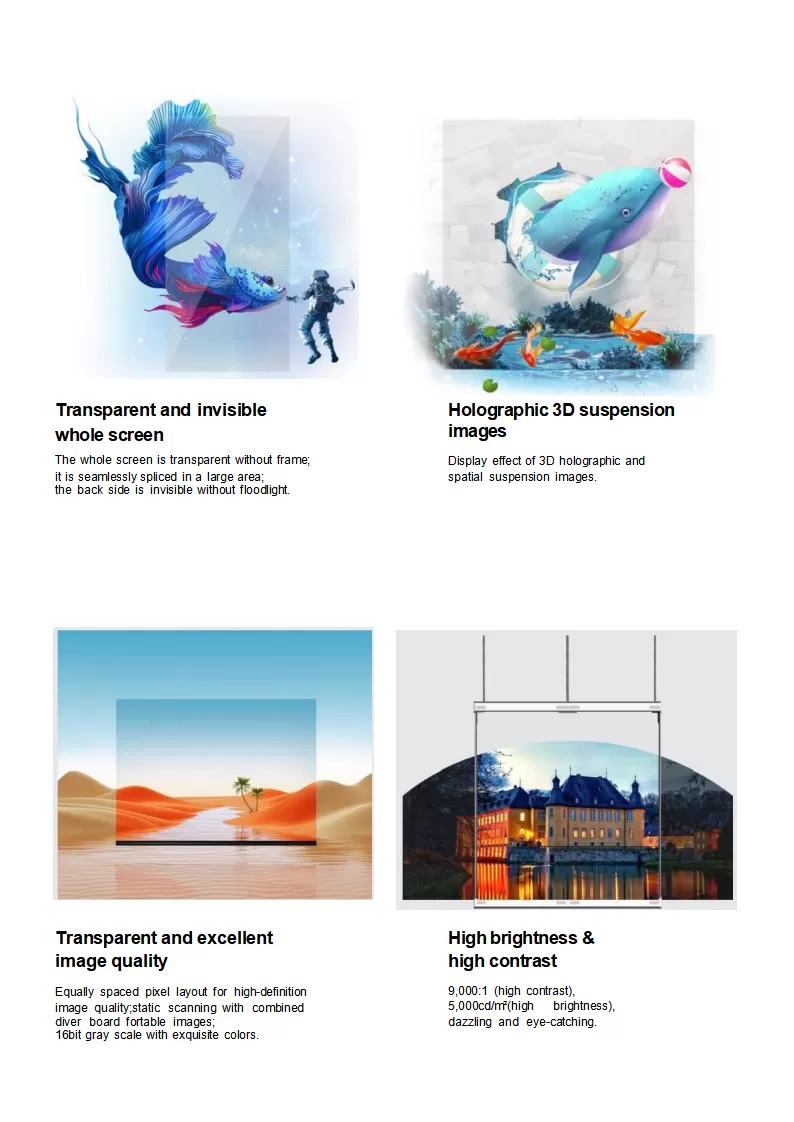

- Features
- Specification
,
,
,
,
,
Related Products
Creative LED Display
Customized Solution Available
Customized Solution Available
Creative LED Display
Five Core Functions,Your Needs, We Create
Read more
HiBK COB
P0.39｜P0.62｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
P0.39｜P0.62｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
HiBK COB
NO MODULE FRAME DESIGN
Read more
H169-C
P0.625｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
P0.625｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
H169-C
R169-C Series mini filp chip technology,anti-collision, HDR picture quality.
Common cathode circuit with low power consumption. 3 in 1 integrated system.
Read more
HTi Series
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
HTi Series
High-end energy-saving LED dispiay
Read more
| Item | HQX3 | HQX6 |
| Pixel Pitch | P3.91mm | P6.25mm |
| Pixe Per Sq.m | 65,536 Pixel | 25,600 Pixel |
| Transparency | 80% | 90% |
| Display Size (mm(w*h) | 250x1000/250*1200 | 250x1000/250*1200 |
| Profile Size (mm)(w*h) | 250x1025/250x1200 | 250x1200/250x1500 |
| Resolution（dot） | 64x256/64x300 | 40x188/40x236 |
| Weight (Kg/SET) | 6 | 5 |
| Brightness (Nits) | 1500-3500CD/㎡ | 1500-3500CD/㎡ |
| Scan Mode | Single Pixel Single Control | |
| Encapsulation Type | Light Board & Driving Board Integrated | |
| Life Span | ≥ 100,000.00 Hours | |
| Gray Scale | 16bit | |
| Max Power Consumption(W/ m²) | 1000 | |
| Average Power Consumption(W/ m²) | 375 | |
| Input Voltage | AC100~240V 50/60Hz | |
| Module Working Voltage | DC4.2V ±0.2V | |
| Working Temperature | 0~50℃ | |
| Working Humidity | 20%RH ~ 85%RH，without Condensation | |
| Storage Temperature | -20℃ ~60℃ | |
| Storage Humidity | 10%RH ~ 85%RH，without Condensation | |
| Frame Material | Aviation Aluminum Alloy | |
| Installation Environment | Indoor IP20 | |
